Bluewater 22mm In Rush Push Button Switch On/Off #9059-1113-4
Original price was: $62.78.$18.83Current price is: $18.83.
Description
Download Literature
Bluewater 9059-1113-4 Switches

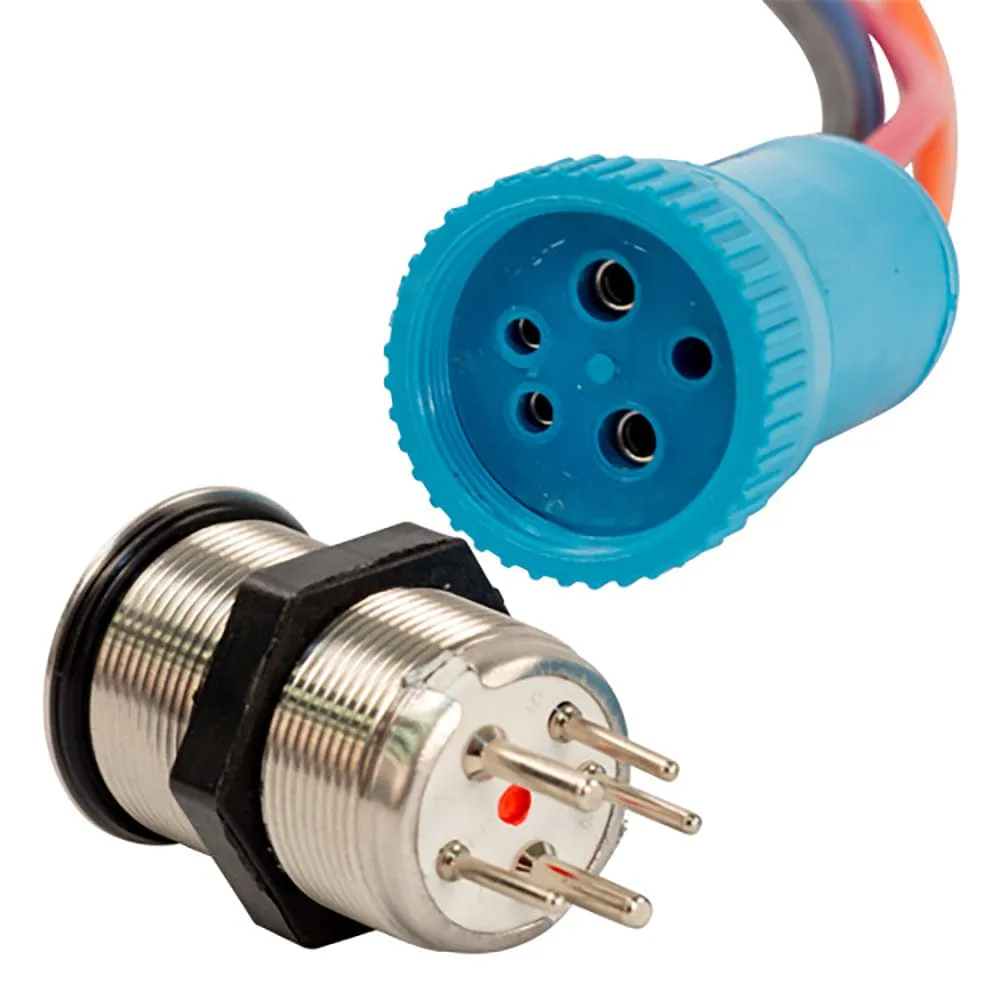

22mm Push Button Switch – Off/On Contact – Blue/Red LED – 4′ Lead
This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard “Off/On” contact.
The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.
Features:
- 4 ft. lead
Specifications:
- Function: Off-On (standard contact)
- Off/On: Blue/red
- Rear Mark Page: Red dot
- Switch Rating: 15A/12 – 24VDC Â
- Material: Stainless steel
- Mechanical Life: 50,000 cycles  Â
- Electrical Life: 10,000 cycles
Installation
Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.
Normalized SKU: 905911134
Bluewater 9059-1113-4 Literature Download
%20POWER%20&%20ELECTRICAL%20SUPPLIES%20>%20ELECTRICAL%20SWITCHES”> Quick Reference Guide
Owners Manual
