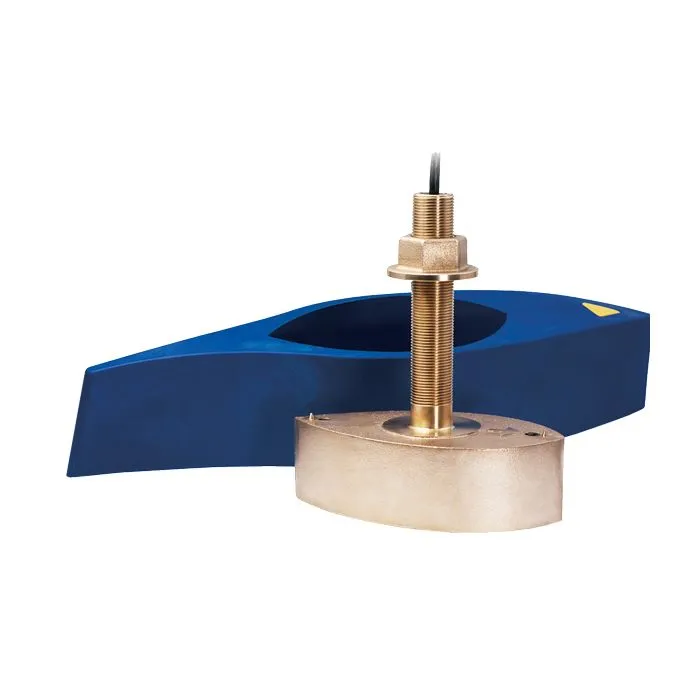

Airmar B265C-LH Bronze TH Low/High CHIRP With Bare Wire Mix-N-Match

Original price was: $1,999.00.Current price is: $299.99.
Next

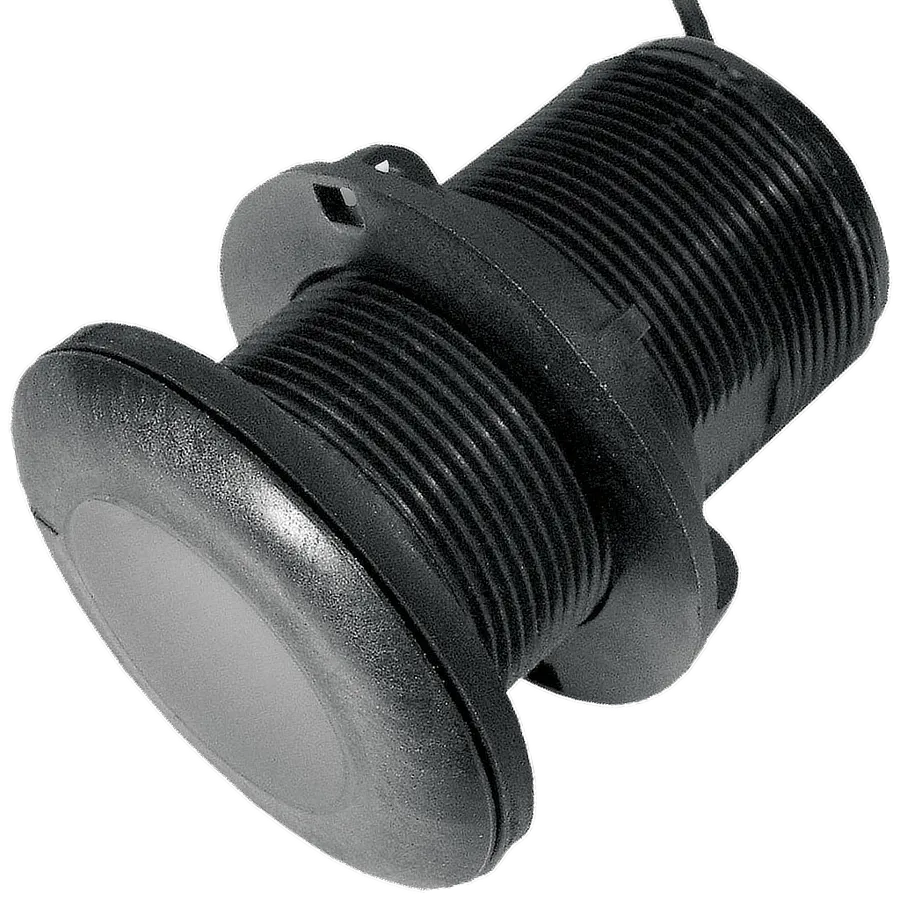

Airmar P319-DT-9N – P319 50/200kHz, 600W, Navico 9-Pin, DT

Original price was: $187.09.Current price is: $46.77.
Next Product Image

Airmar B765C-LM-12G – B765 Low-Medium Chirp, 600W, w/ FB, Garmin 12-Pin, DT

Original price was: $984.99.Current price is: $197.00.

SKU: QGO924473 Categories: ,
Trust Badge Image

Description

300 / 600 W*

It’s a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LM gives the performance of the larger transducers but in a compact package. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, provide excellent depth penetration. Meanwhile the medium frequency range of 80 to 130 kHz excels at detailed bottom structure and tight-holding fish targets in mid-depth.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

300 / 600 W*

It’s a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LM gives the performance of the larger transducers but in a compact package. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, provide excellent depth penetration. Meanwhile the medium frequency range of 80 to 130 kHz excels at detailed bottom structure and tight-holding fish targets in mid-depth.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

  • Depth and fast-response water-temperature sensing
  • Low frequency: 40 to 75 kHz
    • 32° to 21° beamwidth
    • Maximum depth of 366 m (1200′)
    • * Operates at 300 W
  • Medium frequency: 80 to 130 kHz
    • 24° to 16° beamwidth
    • Maximum depth of 274 m (900′)
    • * Operates at 600 W
  • 85 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
  • All the advantages of the larger, thru-hull, Chirp transducers yet suitable size-wise for smaller boats
  • Bronze housing with High-performance Fairing for optimal performance at higher speeds
  • Patented Xducer ID® technology

!!!!—-
